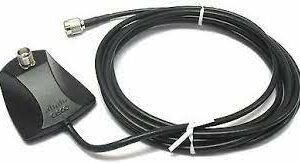

3G-ANTM-OUT-LP Specification
3G-ANTM-OUT-LP Specification |
|
| General | |
| Product Type | Antenna |
| Weight | 6 oz |
| Cable Length | 15 ft |
| Enclosure Color | Black |
| Antenna | |
| Antenna Placing / Mounting | Outdoor |
| Frequency Range | 806 – 960 MHz, 1.71 – 2.17 GHz |
| Gain | 0 dBi (for 806 to 960 MHz), 1.5 dBi (for 1.71 – 2.17 GHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Horizontal Beamwidth | 64 ? (at 806 to 960 MHz), 90 ? (at 1.71 – 2.17 GHz) |
| Impedance | 50 Ohm |
| Cabling & Wiring | |
| Connector Provided | 1 x TNC male |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | IEC 60529 IP65, UL 94 V-0 |
| Environmental Parameters | |
| Min Operating Temperature | -40 ?F |
| Max Operating Temperature | 185 ?F |
