E7Y71A Specification

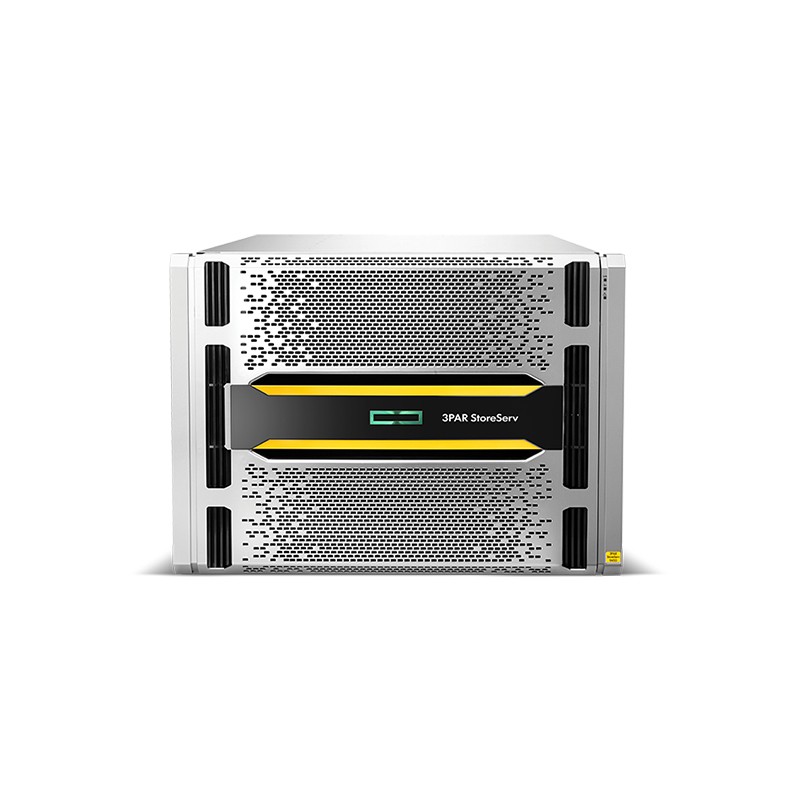

HPE 3PAR StoreServ 8000 Storage Specification |
|
|
Capacity |
3000 TiB Maximum, depending on model |
|
Drive description |
SFF SAS or LFF SAS (E7Y71A supports SFF SAS.) |
|
Enclosures |
(38) 3PAR 8000 SFF SAS Drive Enclosure (38) 3PAR 8000 LFF SAS Drive Enclosure Maximum, depending on model. |
|
Maximum drives per enclosure |
24 |
|
Host interface |
16 Gb/sec Fibre Channel (24) Ports 10 GbE iSCSI/FCoE (8) Ports 1Gb Ethernet (16) Ports 10Gb Ethernet (8) Ports Maximum supported, depending on configuration and model |
|
Cache |
384 GiB Maximum, depending on model |
|
Storage controller |
3PAR 8000 6-core 2.2GHz Controller Node 3PAR 8000 10-core 2.4GHz Controller Node Maximum, depending on mode |
|
Availability features |
Redundant power supplies and fans A minimum of dual redundant controllers, with up to two controllers for added redundancy RAID 1, RAID 5 and RAID 6 for data protection. |
|
Servers supported |
HPE ProLiant rack mount and blades HPE Integrity servers Sun SPARC, x86 Cisco UCS IBM p-series Industry Standard Servers Maximum, depending on model |
|
Compatible operating systems |
Microsoft Windows Server 2008 Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Hyper-V HP-UX SUSE Linux Enterprise Server (SLES) Red Hat Enterprise Linux (RHEL) VMware ESX and ESXi Oracle Solaris Oracle UEK Oracle Linux Citrix XenServer IBM AIX HPE OpenVMS Apple OS X HPE OpenVMS is a registered release only. |
