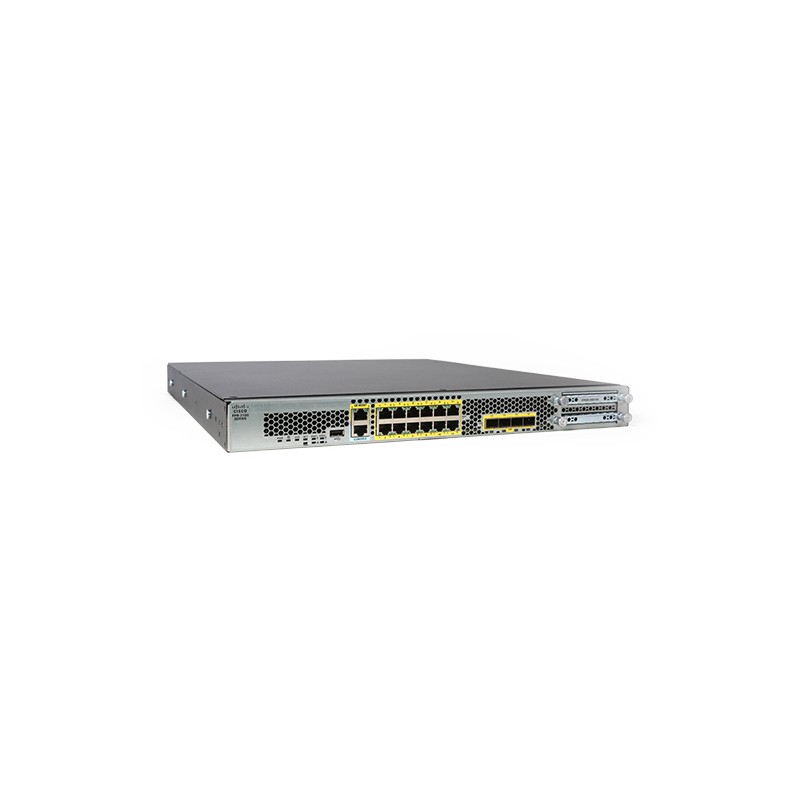

FPR2140-NGFW-K9 Specification
FPR2140-NGFW-K9 Specification |
||
|
Product Number |
FPR2140-NGFW-K9 |
|
|
Product Description |
Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays |
|
|
Hardware Specifications |
||
|
Dimensions (H x W x D) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
|
|
Form factor (rack units) |
1RU |
|
|
I/O module slots |
1 NM slot |
|
|
Integrated I/O |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
|
|
Network modules |
(FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
|
|
Maximum number of interfaces |
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
|
|
Integrated network management ports |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
|
|
Serial port |
1 x RJ-45 console |
|
|
USB |
1 x USB 2.0 Type-A (500mA) |
|
|
Storage |
1x 200 GB, 1x spare slot (for MSP) |
|
|
Power supplies |
Configuration |
Dual 400W AC. Single/dual 350W DC optional |
|
AC input voltage |
100 to 240V AC |
|
|
AC maximum input current |
< 6A at 100V |
|
|
AC maximum output power |
400W |
|
|
AC frequency |
50 to 60 Hz |
|
|
AC efficiency |
>89% at 50% load |
|
|
DC input voltage |
-48V to -60VDC |
|
|
DC maximum input current |
< 12.5A at -48V |
|
|
DC maximum output power |
350W |
|
|
DC efficiency |
>88% at 50% load |
|
|
Redundancy |
1+1 AC or DC with dual supplies |
|
|
Fans |
1 hot-swappable fan module (with 4 fans) |
|
|
Noise |
56 dBA @ 25C 77 dBA at highest system performance. |
|
|
Rack mountable |
Yes. Mount rails included (4-post EIA-310-D rack) |
|
|
Weight |
21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs |
|
|
Temperature: operating |
32 to 104 ?F (0 to 40 ?C) |
|
|
Temperature: nonoperating |
-4 to 149 ?F (-20 to 65 ?C) |
|
|
Humidity: operating |
10 to 85% noncondensing |
|
|
Humidity: nonoperating |
5 to 95% noncondensing |
|
|
Altitude: operating |
10,000 ft (max) |
|
|
Altitude: nonoperating |
40,000 ft (max) |
|
