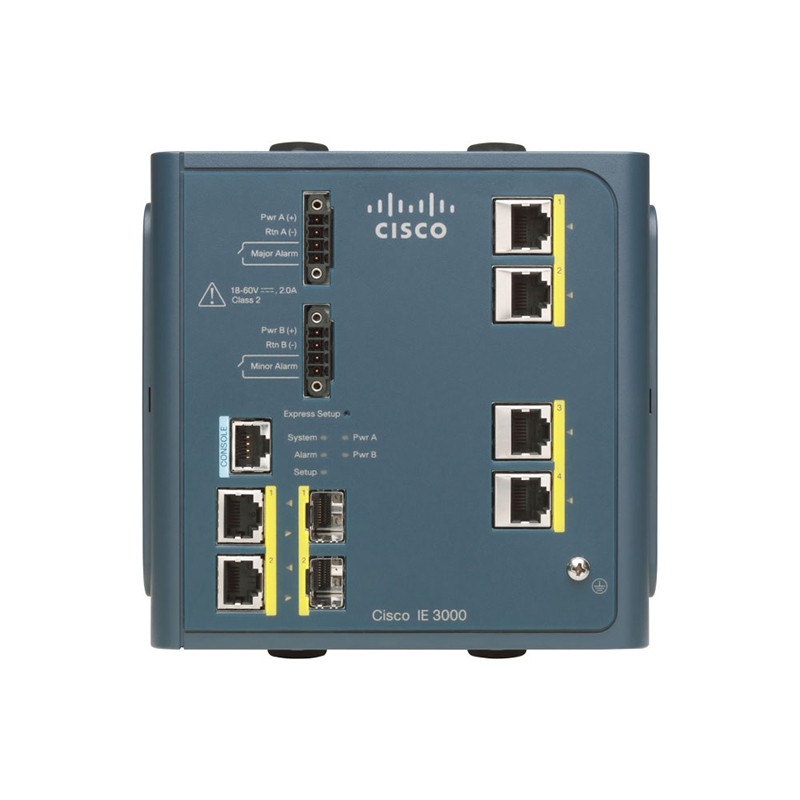

IE-3000-4TC Specification
IE-3000-4TC Specification |
|
|
Ports |
4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber |
|
Supported Expansion Modules |
Each switch supports 2 Cisco modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module |
|
Power |
DC input range 18VDC-60VDC |
|
Software |
Layer 2 LAN Base Image |
|
Dimensions (H x W x D) |
6.0 ?? W x 5.8 ?? H x 4.4 ?? D (152mm W x 147mm H x 112mm D) |
|
Weight |
4.4 lb (2.0 kg) |
|
Cisco IE 3000 Series switch hardware |
|
|
Performance |
?? Wire-speed switching, 16 Gbps switching fabric ?? Forwarding rate based on 64-byte packets: 6.5 Mpps ?? 128 MB DRAM ?? 64 MB Compact Flash memory ?? Configurable up to 8000 MAC addresses (Layer 2) ?? Configurable up to 2000 MAC addresses (Layer 3) ?? Configurable up to 256 IGMP multicast groups (Layer 2) ?? Configurable up to 1000 IGMP groups and multicast routes (Layer 3) ?? Configurable up to 3,000 unicast routes (Layer 3) ?? Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports |
|
Connectors and cabling |
?? 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling ?? 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling ?? 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling ?? 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber) ?? 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber) |
|
Indicators |
?? Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications ?? System-status LED: System, link status, link duplex, link speed, indications |
|
Dimensions (H x W x D) |
?? Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0 ??W x 5.8 ??H x 4.4 ??D (152mm W x 147mm H x 112mm D) ?? Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0 ??W x 5.8 ??H x 4.4 ??D (152mm W x 147mm H x 112mm D) ?? Cisco IEM-3000-8TM=: 3.5 ??W x 5.8 ??H x 4.4 ??D (89mm W x 147mm H x 112mm D) ?? Cisco IEM-3000-8FM=: 3.5 ??W x 5.8 ??H x 4.4 ??D (89mm W x 147mm H x 112mm D) ?? Cisco IEM-3000-4SM=: 3.5 ??W x 5.8 ??H x 4.4 ??D (89mm W x 147mm H x 112mm D) ?? Cisco IEM-3000-8SM=: 3.5 ??W x 5.8 ??H x 4.4 ??D (89mm W x 147mm H x 112mm D) ?? Cisco IEM-3000-4PC=: 3.5 ??W x 5.8 ??H x 4.4 ??D (89mm W x 147mm H x 112mm D) ?? Cisco IEM-3000-4PC-4TC=: 3.5 ??W x 5.8 ??H x 4.4 ??D (89mm W x 147mm H x 112mm D) ?? Cisco PWR-IE50W-AC=: 2.0 ??W x 5.8 ??H x 4.4 ??D (51mm W x 147mm H x 112mm D) ?? Cisco PWR-IE50W-AC-IEC=: 2.0 ??W x 5.8 ??H x 4.4 ??D (51mm W x 147mm H x 112mm D) ?? Cisco PWR-IE65W-PC-AC=: 2.6 ??W x 5.9 ??H x 4.6 ??D (66mm W x 150mm H x 117mm D) ?? Cisco PWR-IE65W-PC-DC=: 2.6 ??W x 5.9 ??H x 4.6 ??D (66mm W x 150mm H x 117mm D) |
|
Weight |
?? Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg) ?? Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg) ?? Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg) ?? Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg) ?? Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg) ?? Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg) ?? Cisco IEM-3000-4PC=: 2.4 (1.08 Kg) ?? Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg) ?? Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg) ?? Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg) ?? Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg) ?? Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg) |
|
Operating environment |
Operating temperature: -40C to +75C ?? -40C to +70C (Vented Enclosure ?? 40 LFM Air Flow) ?? -40C to +60C (Sealed Enclosure ?? 0 LFM Air Flow) ?? -24C to +75C (Fan or Blower equipped Enclosure ?? 200 LFM Air Flow) ?? -40C to +85C (IEC 60068-2-2 Environmental Type Testing ?? 16 hours) ?? Storage temperature: -40C to +85C ?? Operating relative humidity: 10 to 95% (non-condensing) ?? Operating altitude: Up to 13,000 ft (3963m) ?? Storage altitude: Up to 15,000 ft (4573m) |
|
Mean Time Between Failures (MTBF) |
?? Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942 ?? Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451 ?? Cisco IEM-3000-8TM=: 926,999 ?? Cisco IEM-3000-8FM=: 264,689 ?? Cisco IEM-3000-4SM=: 8,887,990 ?? Cisco IEM-3000-8SM=: 7,732,890 ?? Cisco IEM-3000-4PC=: 1,494,990 ?? Cisco IEM-3000-4PC-4TC=: 1,291,440 ?? Cisco PWR-IE50W-AC=: 1,662,359 ?? Cisco PWR-IE50W-AC-IEC=: 1,662,359 ?? Cisco PWR-IE65W-PC-DC=: 2,468,430 ?? Cisco PWR-IE65W-PC-AC=: 2,488,401 |
