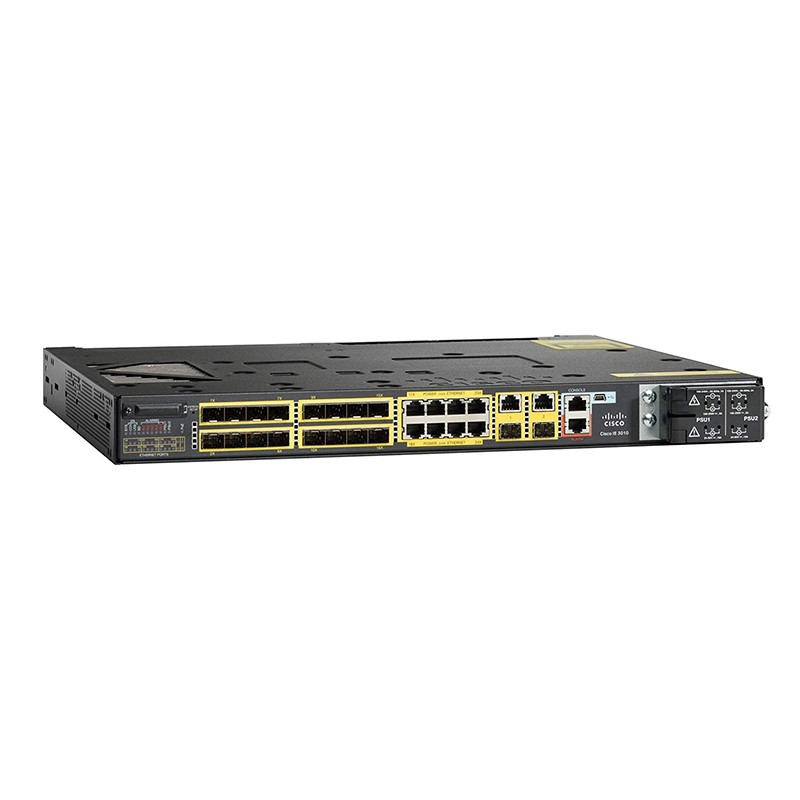

IE-3010-16S-8PC Specification
IE-3010-16S-8PC Specification |
|
|
Ports |
16 Fast Ethernet SFP ports, 8 10/100BASETX/PoE ports, and 2 dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active) |
|
Performance and scalability |
?? Wire-speed switching, 8 Gbps switching fabric ?? Forwarding rate based on 64-byte packets: 6.5 Mpps ?? 256 MB DDR2 SDRAM ?? 1 GB SD Flash memory (128 MB enabled) ?? Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups. ?? Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes ?? Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports |
|
Dimensions (H x W x D) |
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height |
|
Weight |
10 lb (4.5kg) (without power supply unit) |
|
Connectors and cabling |
10/100 ports: ?? 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling ?? 100FX SFP ports (IE-3010-16S-8PC only): ?? 100BASE-FX, -LX, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single mode) Gigabit ports: ?? 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP/STP cabling ?? 1000BASE-SX, -LX/LH, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single-mode fiber) Console ports: ?? Management console port: RJ45 connector for serial connection ?? Management console port: USB mini type B connector for USB connection |
|
Indicators |
?? Per-port status LEDs: Link integrity, port disabled, and activity indications ?? System-status LED: System activity, system integrity, ?? Alarm-in status LEDs: Four alarm inputs status indicator ?? Alarm-out status LED: Alarm status indicator ?? Power supply unit LED: Power output integrity and power supply presence ?? PoE (IE-3010-16S-8PC only): PoE activity, PoE integrity, and PoE disabled ?? SD Flash LED: SD flash integrity and SD flash presence ?? RS232 LED: RS232 console selection ?? USB LED: USB console selection |
|
Environmental ranges |
?? -40 ?F to 140 ?F (-40 to +60 ?C) continuous operating temperature range ?? -40 ?F to 185 ?F (-40 to +85 ?C) type test for 16 hours at 85 ?C ?? Operating altitude: 3000 m (9843 ft) at 40 ?C (104 ?F) ?? Operating relative humidity: 5% to 95% noncondensing |
|
Storage and transportation |
?? Temperature: -40 ?F to 185 ?F (-40 to +85 ?C) ?? Altitude: 15,000 ft (4570 m) ?? Relative humidity: 5% to 95% noncondensing |
|
Mean time between failure (MTBF) |
?? Cisco IE-3010-24TC: 207,731 hrs ?? Cisco IE-3010-16S-8PC: 230,112 hrs |
|
Warranty |
Five years limited warranty |
