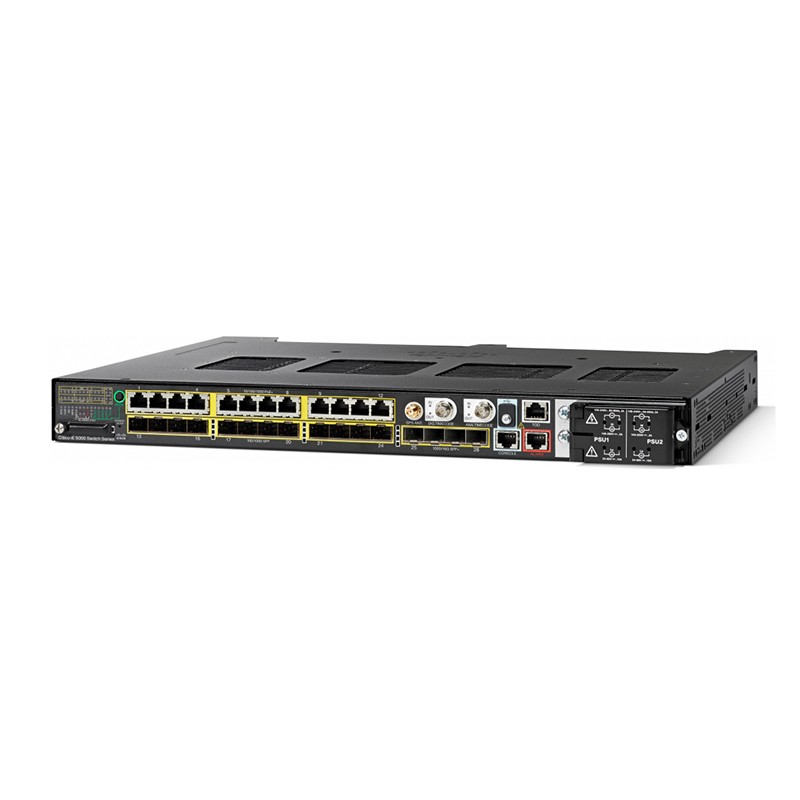

IE-5000-12S12P-10G Specification
IE-5000-12S12P-10G Specification |
|
|
Total ports |
28 |
|
Uplinks |
4 SFP/SFP+ (1G/10G) |
|
SFP fiber ports (S) |
12 (FE/GE) |
|
Copper 10/100/1000 PoE/PoE+ ports |
12 (10/100/1000M) |
|
Default software |
LAN Base |
|
Dimensions (H x W x D) |
?? 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H ?? 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
|
Weight |
?? Without Power Supply: 13.7 lb (6.21 kg) ?? PWR-RGD-AC-DC-H: 2.55 lb (1.16kg) ?? PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg) ?? PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
|
Hardware |
?? 1-GB DRAM ?? 256-MB onboard flash memory ?? 1-GB removable SD flash memory card ?? Mini-USB connector ?? RJ-45 traditional console connector ?? GPS antenna interface (needs future software support) – GPS antenna input ?? Analog Timing I/O interface (needs future software support) – For analog IRIG support ?? Digital Timing I/O interface (needs future software support) – For digital timing such as IRIG-B TTL ?? TOD interface (needs future software support) – Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support |
|
Alarm |
?? Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
|
Power consumption |
?? Maximum of 90W not including PoE consumption |
|
Accessories |
?? SD-IE-1GB= – Spare SD card |
|
Forwarding bandwidth |
28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) – Line rate/Non-blocking |
|
Switching bandwidth |
56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G) |
|
Forwarding rate |
41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate) |
|
Number of queues |
4 egress |
|
Unicast MAC addresses |
16,000 |
|
IGMP multicast groups |
1,000 |
|
Number of VLANs |
1,005 |
|
IPv4 MAC security ACEs |
1,000 with default TCAM Template |
|
NAT translation |
Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
