J9774A Specification
J9774A Specifications |
|
|
Type |

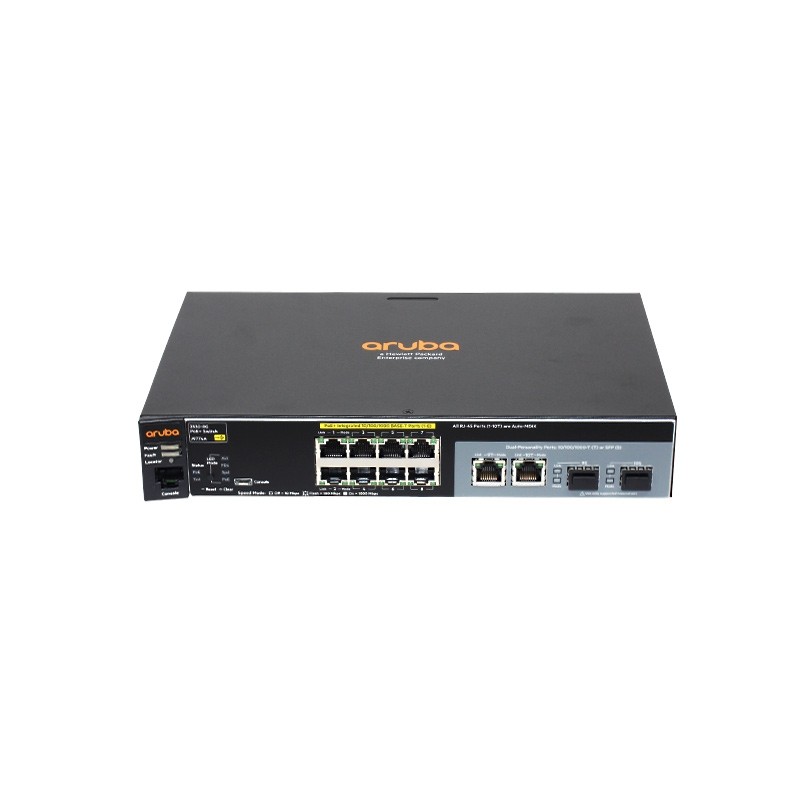

Aruba 2530-8G-PoE+ Switch |
|
System specifications |
|
|
Ports |
? 8 ? RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ? 2 ? dual-personality ports; each port can be New as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ? 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
|
Memory and processor |
Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
|
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
|
Management |
IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
|
Performance (IPv6 Ready Certified) |
|
|
1000 Mb latency |
< 2.6 ?s (LIFO 64-byte packets) |
|
100 Mb Latency |
< 7.4 ?s (LIFO 64-byte packets) |
|
Throughput |
Up to 14.8 million pps (64-byte packets) |
|
Switching capacity |
20 Gb/s |
|
MAC address table size |
16000 entries |
|
Physical specifications |
|
|
Dimensions (W x D x H) |
25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
|
Weight |
1 kg (2.2 lb) |
|
Electrical specifications |
|
|
Maximum heat dissipation |
65 BTU/hr (68.58 kJ/hr), (switch only: 65 BTU/hr; combined switch + max. PoE devices: 293 BTU/hr) |
|
Voltage |
100 – 127 / 200 – 240 V ac |
|
Current |
1.4 A |
|
Idle power |
13.4 W |
|
Maximum power rating |
86 W |
|
PoE power |
67 W |
|
Frequency |
50/60 Hz |
|
Environmental specifications |
|
|
Operating temperature |
0 ? to 45 ?C (32 ? to 113 ?F) |
|
Operating relative humidity |
15% to 95% @ 40 ?C (104 ?F), non-condensing |
|
Non-operating/storage temperature |
-40 ? to 70 ?C (40 ? to 158 ?F) |
|
Non-operating/storage relative humidity |
15% to 90% @ 65 ?C (149 ?F), noncondensing |
|
Altitude |
Up to 3 km (10,000 ft) |
|
Acoustic |
Power: 0 dB, Pressure: 0 dB |
|
Safety agency certifications |
|
|
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
