J9822A Specification
J9822A Specification |
|
|
Type |

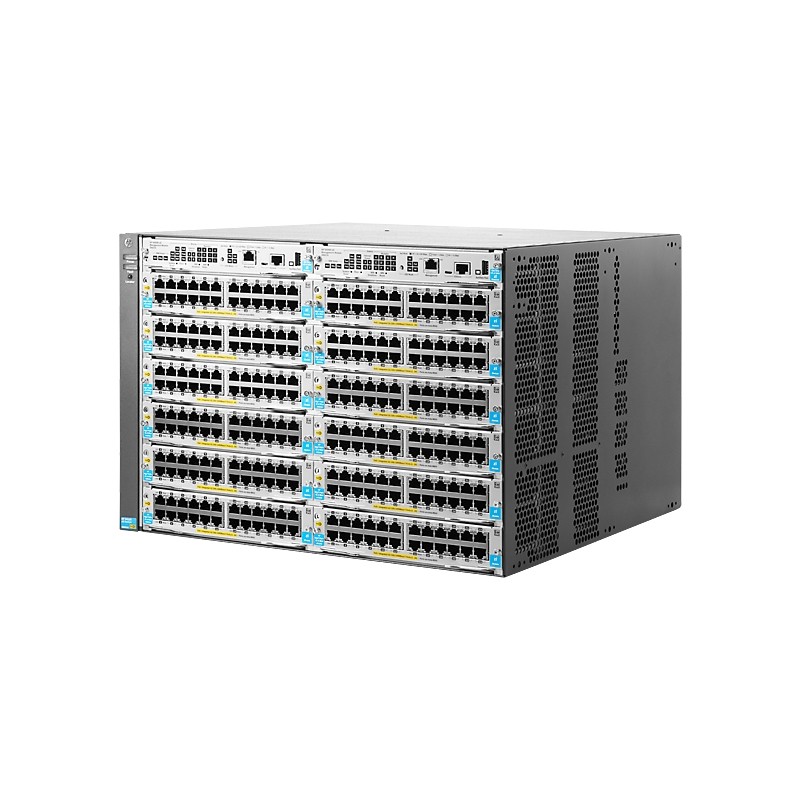

HPE 5412R zl2 Switch |
|
Included accessories |
1 HPE 5400R zl2 Management Module (J9827A) 1 HPE 5412R zl2 Switch Fan Tray (J9832A) |
|
I/O ports and slots |
12 open module slots Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi-Gigabit or 24 40GbE ports, or a combination |
|
Power supplies |
4 power supply slots 2 minimum power supplies required (ordered separately) |
|
Fan Tray |
Includes: 1 x J9832A 1 fan tray slot |
|
Dimensions (W x D x H) |
17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height) |
|
Weight |
38.1 lb (17.28 kg) |
|
Memory and processor |
|
|
v3 Gigabit Module |
Dual ARM ? Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
|
v2 Gigabit Module |
ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal |
|
v3 10G Module |
Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
|
v2 10G Module |
ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal |
|
v3 40G Module |
Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
|
Management Module |
Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
|
Performance (IPv6 Ready Certified) |
|
|
1000 Mb Latency |
< 2.8 ?s (FIFO 64-byte packets) |
|
10 Gbps Latency |
< 1.8 ?s (FIFO 64-byte packets) |
|
40 Gbps Latency |
< 1.5 ?s (FIFO 64-byte packets) |
|
Throughput |
Up to 1142.8 Mpps |
|
Routing/Switching capacity |
1920 Gbps |
|
Switch fabric speed |
2030 Gbps |
|
Routing table size |
10000 entries (IPv4), 5000 entries (IPv6) |
|
MAC address table size |
64000 entries |
|
Environment |
|
|
Operating temperature |
32 ?F to 113 ?F (0 ?C to 45 ?C); 0 ?C to 40 ?C with J8177C transceiver installed, 0 ?C to 35 ?C with FIPS Opacity Shield installed |
|
Operating relative humidity |
15% to 95% @ 113 ?F (45 ?C), noncondensing |
|
Nonoperating/Storage temperature |
-40 ?F to 158 ?F (-40 ?C to 70 ?C) |
|
Nonoperating/Storage relative humidity |
15% to 95% @ 149 ?F (65 ?C), noncondensing |
|
Altitude |
Up to 10,000 ft (3 km) |
|
Acoustic |
Power: 49 dB, Pressure: 35.7 dB ISO 7779,, ISO 9296 |
|
Electrical characteristics |
|
|
Frequency |
50/60 Hz |
|
80plus.org Certification |
Gold |
|
Description |
Does not come with power supply. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications. |
|
Maximum heat dissipation |
4900 BTU/hr (5169 kJ/hr), (max. non-PoE); 7400 BTU/hr (7,807 kJ/hr), (max. using PoE) |
|
Voltage |
100 ??127/200 ??240 VAC, rated |
|
Idle power |
(depending on power supply chosen) |
|
Notes |
Heat dissipation does not include heat dissipated by the PoE-powered devices themselves. When more than four power cords are installed in a 5412R zl2 switch chassis, additional installation requirements are needed. |
|
Safety |
CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 |
|
Emissions |
FCC part 15 Class A; EN 55022/CISPR 22 Class A |
|
Immunity EN ESD Radiated EFT/Burst Surge Conducted Power frequency magnetic field Harmonics Flicker |
EN 55024, CISPR 24 IEC 61000-4-2; 4 kV CD, 8 kV AD; HPE ENV. 765.002 IEC 61000-4-3; 3 V/m IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC IEC 61000-4-6; 3 Vrms IEC 61000-4-8; 1 A/m, 50 or 60 Hz IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
|
Management |
IMC ??Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB) AirWave Network Management |
|
Notes |
Supported 1G SFP transceivers are revision ??B ?? or later (product number ends with the letter ??B ?? or later; For example, J9142B, J8177C). |
