Above image may not match the actual product.

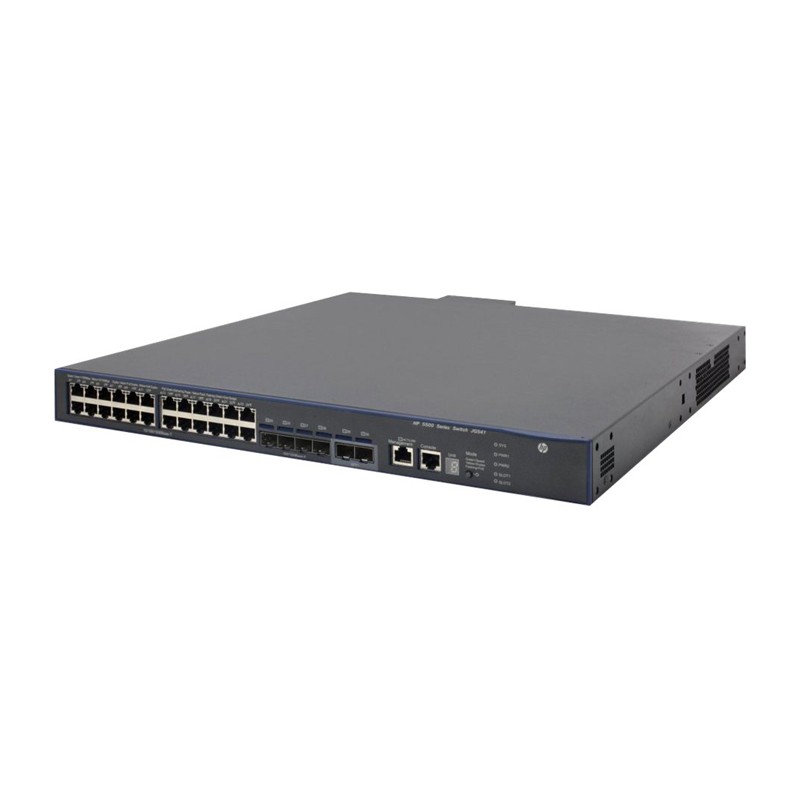

JG311A HP 5500-24G-4SFP HI Switch with 2 Interface Slots
HPE FlexNetwork 5500 HI Series switches are Gigabit switches delivering outstanding resiliency, security, and multiservice support for the edge layer of data center, large campus, and metro Ethernet network. This JG311A has 24 x 10/100/1000 ports. Additionally, the model has 4 x fixed Gigabit Ethernet SFP ports and 2 x 10 Gigabit SFP+ ports as well as two expansion module slots.
| Weight | 14 lbs |
|---|---|
| Brand | HP |
| Type | HP 5500-24G-4SFP HI Switch with 2 interface Slots |
| Dimensions (H x W x D) | 4.37 x 44 x 36 cm (1.72 x 17.32 x 14.17 in) (1U height) |
| Weight | 7.5 kg (16.53 lb) |
| Operating relative humidity | 5% to 95% Non-condensing |
| Non-operating/storage temperature | -40° to +70°C (-40° to +158°F) |
| Non-operating/storage relative humidity | 5% to 95% Non-condensing |
| Acoustic | Low-speed fan: 48.3 dB High-speed fan: 54.0 dB |
| Frequency | 50/60 Hz |
| Maximum heat dissipation1 | 481 BTU/hr (507.46 kJ/hr) |
| Maximum power rating | 141 W |
| PoE power2 | - |
| Voltage | 100 - 240 V ac, rated -48 to -60 V dc, rated (depending on power supply chosen) |
| Ports | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 38 autosensing 100/1000 ports, with optional module |
| Additional ports and slots | 1 RJ-45 serial console port 1 RJ-45 out-of-band management port |
| Power supplies | 2 power supply slots 1 minimum power supply required (ordered separately) |
| Memory and processor | 1 GB SDRAM Packet buffer size: 3 MB 512 MB flash |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Performance | 1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 130.9 mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
