JH146A Specification
JH146A Specifications |
|
|
System specifications |
|
|
Type |

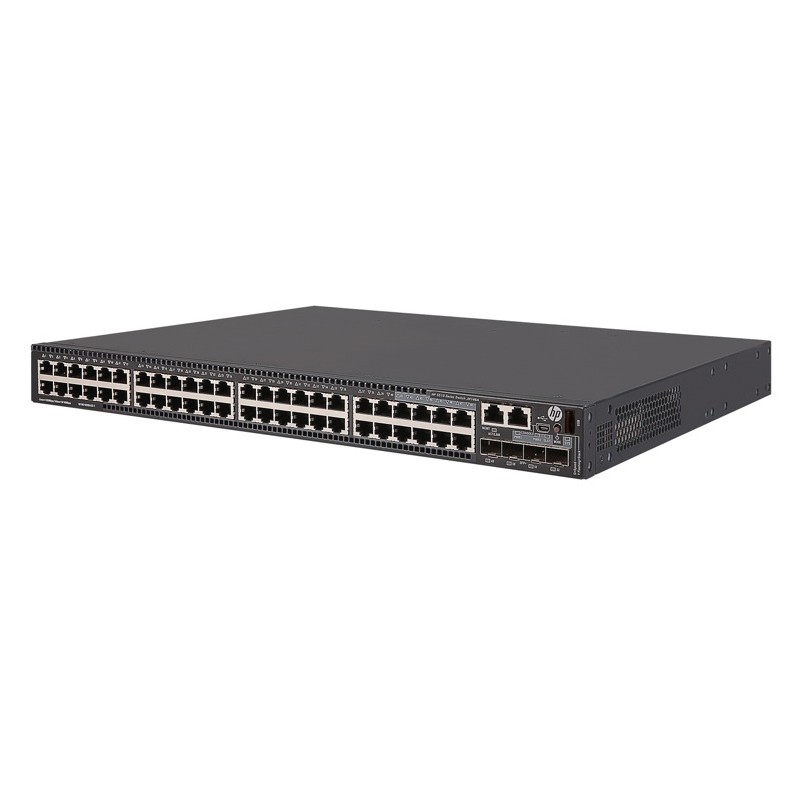

HPE FlexNetwork 5510 48G 4SFP+ HI 1-slot Switch |
|
I/O ports and slots |
? 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) ? Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACSec ? 4 SFP+ 10GbE ports ? 1 port expansion module slot ? Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
|
Additional ports and slots |
? 1 dual-personality (RJ-45 or USB micro-B) serial console port ? 1 RJ-45 out-of-band management port ? 1 USB 2.0 |
|
Performance |
|
|
1000 Mb Latency |
< 5 ?s |
|
10 Gbps Latency |
< 3 ?s |
|
Throughput |
up to 250 Mp/s |
|
Routing/Switching capacity |
336 Gb/s |
|
Routing table size |
IPv4 : 32768 entries IPv6 : 16384 entries |
|
MAC address table size |
32768 entries |
|
Physical specifications |
|
|
Dimensions (W x D x H) |
44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
|
Weight |
7.5 kg (16.53 lb) |
|
Electrical specifications |
|
|
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
238 BTU/hr (686.81 kJ/hr), Ranges from 201 BTU/hr to 443 BTU/hr, depending on power supply configuration |
|
Voltage |
100 – 240 V ac, rated (90 – 264 Vac, max) -48 to -60 V dc, rated (-36 to -72 V dc, max) (depending on power supply chosen) |
|
Maximum power rating |
150 W |
|
Idle power |
70 W |
|
PoE power |
NA |
|
Environmental specifications |
|
|
Operating temperature |
0 ?C to 45 ?C (32 ?F to 113 ?F) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-40 ?C to 70 ?C (-40 ?F to 158 ?F) |
|
Nonoperating/Storage relative humidity |
5% to 95%, noncondensing |
|
Acoustic |
Low-speed fan: 49.9 dB, High-speed fan: 64.8 dB ISO 7779 |
|
Safety and emissions |
|
|
Safety |
UL 60950-1 EN 60825-1 Safety of Laser Products-Part 1 EN 60825-2 Safety of Laser Products-Part 2 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1 FDA 21 CFR Subchapter J ROHS Compliance AS/NZS 60950-1 GB 4943 EAC (EurAsian Conformity Certification) |
|
Emissions |
EMC Directive 2004/108/EC FCC (CFR 47, Part 15) Class A EN 61000-4-11:2004 ANSI C63.4-2009 EN 61000-3-3:2008 VCCI V-3/2012.04 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-4-3:2006 EN 61000-4-4:2012; EN 61000-4-5:2006 EN 61000-4-6:2009 CISPR 22:2008 Class A EN 55022:2010 Class A EN 61000-4-29: 2000 CISPR 24:2010 EN 300 386 V1.6.1 VCCI V-3/2013.04 Class A |
|
Immunity |
Generic: EN 55024 ESD: EN300 386 |
|
Management |
IMC – Intelligent Management Center Command-line interface Web browser SNMP manager |
