Above image may not match the actual product.

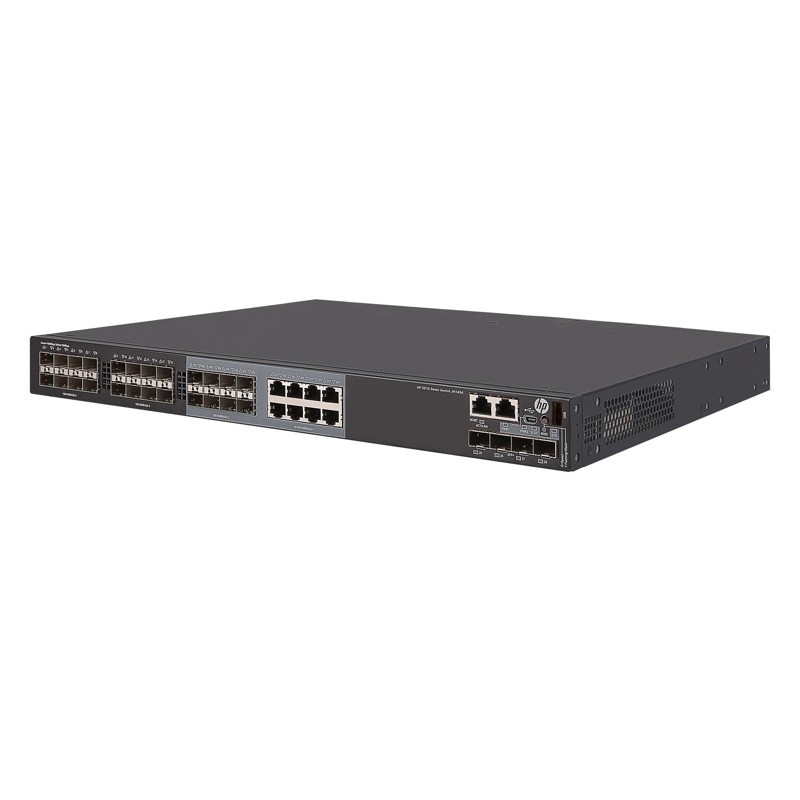

JH149A HPE 5510 24G SFP 4SFP+ HI Switch
The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support for medium and large enterprise networks. JH149A supports 24 x SFP+ Gigabit ports, 4x 10GbE SFP+ ports, and one expansion slot.
| Weight | 14 lbs |
|---|---|
| Brand | HP |
| Product Code | JH149A |
| Type | HPE FlexNetwork 5510 24G SFP 4SFP+ HI 1-slot Switch |
| I/O ports and slots | · 16 fixed Gigabit Ethernet SFP ports; Ports 1 - 8 support MACSec 8 Combo GbE (SFP and RJ45) dual-personality 1000 Mbps port, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 SFP+ 10GbE ports · 1 port expansion module slot · Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
| Additional ports and slots | · 1 dual-personality (RJ-45 or USB micro-B) serial console port · 1 RJ-45 out-of-band management port · 1 USB 2.0 |
| 1000 Mb Latency | < 5 μs |
| 10 Gbps Latency | < 3 μs |
| Throughput | up to 214 Mp/s |
| Routing/Switching capacity | 288 Gb/s |
| Routing table size | IPv4 : 32768 entries IPv6 : 16384 entries |
| MAC address table size | 32768 entries |
| Dimensions (W x D x H) | 44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
| Weight | 7.5 kg (16.53 lb) |
