JH327A Specification
JH327A Specifications |
|
|
Type |

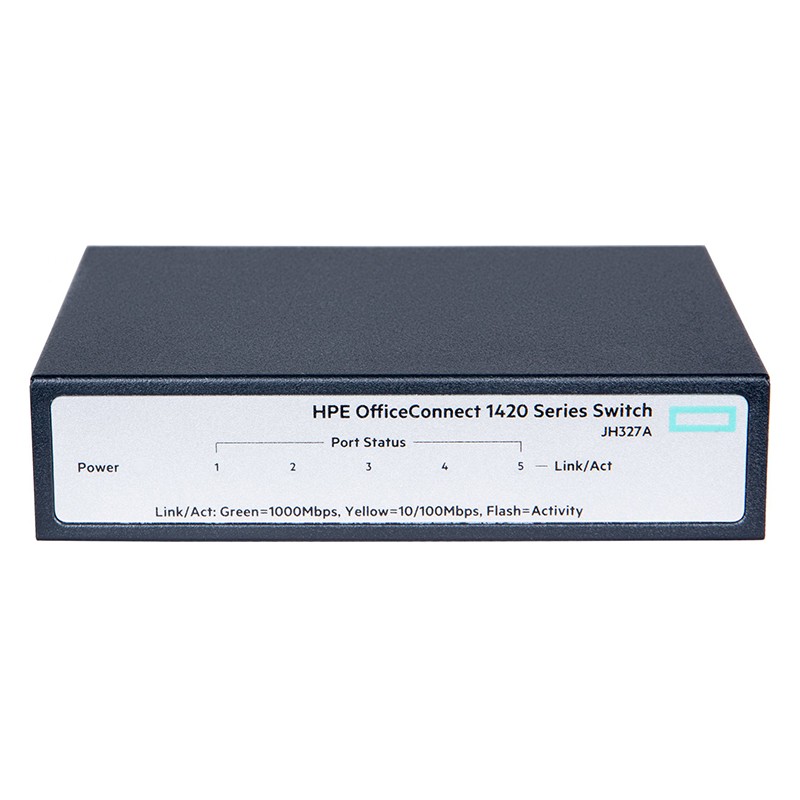

HPE Officeconnect 1420 5G Switch |
|
I/O ports and slots |
5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only |
|
Memory and processor |
Packet buffer size: 1Mb |
|
Mounting and enclosure |
Desktop (rear port) |
|
100Mb latency |
< 3 ?s |
|
1000Mb latency |
< 2.6 ?s |
|
10 Gb/s Latency |
N/A |
|
Throughput |
up to 7.4 Mp/s |
|
Switching capacity |
10Gb/s |
|
MAC address table size |
2048 entries |
|
Reliability: MTBF (years) |
N/A |
|
Dimensions |
2.69 x 11.48 x 8.08cm (1.06 x 4.52 x 3.18 in) |
|
Weight |
0.3 kg (0.66 lb) |
|
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
N/A |
|
Voltage |
100 – 240 V ac (rated) |
|
Current |
N/A |
|
Maximum power rating |
3.0 W4 |
|
PoE power |
N/A |
|
Operating temperature |
0 ?C to 40 ?C(32 ?F to 104 ?F) |
|
Operating relative humidity |
5% to 95%, non condensing |
|
Non operating/Storage temperature |
-40 ?C to 70 ?C (-40 ?F to 158 ?F) |
|
Non operating/Storage relative humidity |
5% to 95%, non condensing |
|
Altitude |
N/A |
|
Acoustic |
Fanless |
|
Safety |
UL 60950 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1-03 |
|
Emissions |
FCC Rules Part 15, Subpart B Class A |
|
Generic |
EN 55022 CISPR 22 |
|
EN |
EN 55024, CISPR 24 |
|
ESD |
IEC 61000-4-2 |
|
Radiated |
IEC 61000-4-3 |
|
EFT/Burst |
IEC 61000-4-4 |
|
Surge |
IEC 61000-4-5 |
|
Conducted |
IEC 61000-4-6 |
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
Harmonics |
IEC 61000-3-2 |
|
Flicker |
IEC 61000-3-3 |
