| General |
| Device Type |

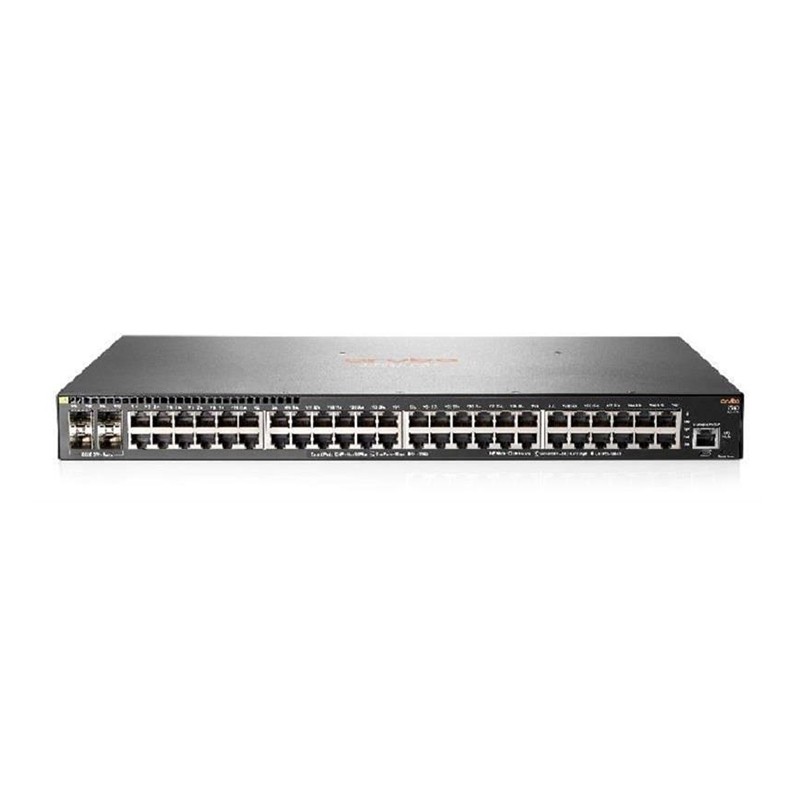

Switch – 48 ports – managed |
| Enclosure Type |
Desktop, rack-mountable, wall-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Performance |
Throughput: 112 Mpps ? Switching capacity: 176 Gbps |
| MAC Address Table Size |
16384 entries |
| Encryption Algorithm |
SSL |
| Authentication Method |
RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Processor |
1 x ARM: 1016 MHz |
| RAM |
1 GB DDR3 SDRAM |
| Flash Memory |
4 GB |
| Interfaces |
48 x 1000Base-T RJ-45 ? 4 x Gigabit / 10Gbit LAN SFP+ ? 1 x console RJ-45 management ? 1 x micro-USB Type B management |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
46.6 Watt |
| Compliant Standards |
CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024: CISPR 24:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Width |
17.4 in |
| Depth |
9.7 in |
| Height |
1.7 in |
| Weight |
6.83 lbs |
| Expansion / Connectivity |
| Service & Support |
Limited warranty – lifetime |
| Min Operating Temperature |
32 ?F |
| Max Operating Temperature |
113 ?F |
| Humidity Range Operating |
15 – 95% (non-condensing) |
| Min Storage Temperature |
-40 ?F |
| Max Storage Temperature |
158 ?F |
| Humidity Range Storage |
15 – 90% (non-condensing) |
