JL558A Specification
JL558A Specification |
|
|
Type |

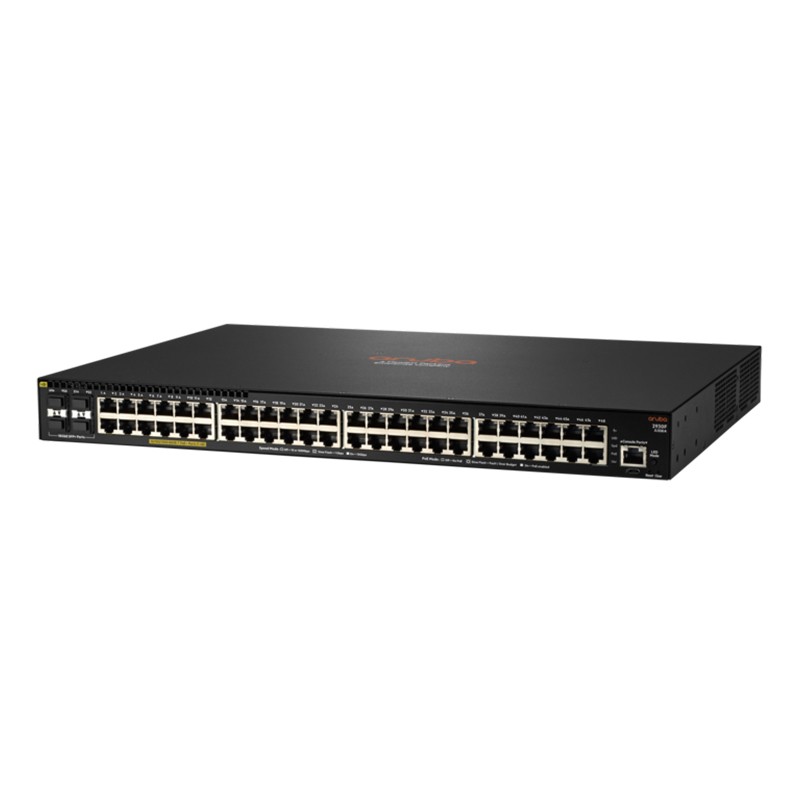

Aruba 2930F 48GPoE+ 4SFP+ 740W Switch |
|
Ports |
(48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ |
|
Memory and processor |
Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC |
|
Management |
Aruba AirWave Central Network Management IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
|
1000 Mb Latency |
< 3.8 ?s (64-byte packets) |
|
10 Gbps Latency |
< 1.6 ?s (64-byte packets) |
|
Throughput |
up to 112.0 Mp/s |
|
Switching capacity |
176 Gb/s |
|
Dimensions |
1.73 x 17.42 x 12.77 in |
|
Input voltage |
100-127 / 200-240 VAC, rated |
|
Power consumption |
980 W (maximum) |
|
Heat dissipation |
420.9 BTU/hr (444.1 kJ/hr) |
