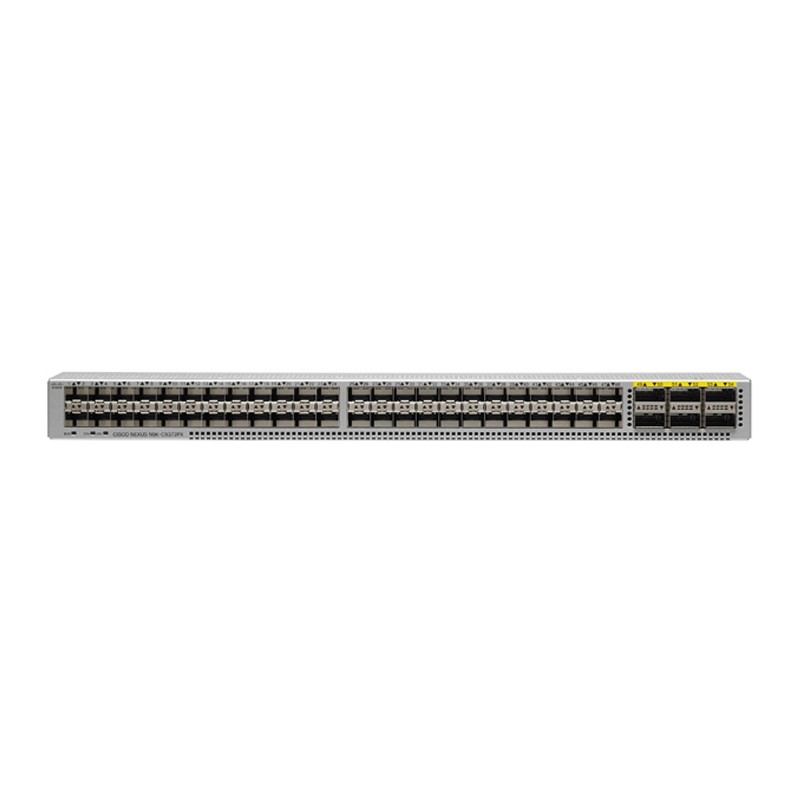

N9K-C9372TX Specification
N9K-C9372TX Specification |
|
|
Ports |
48 fixed 1/10GBASE-T and 6 QSFP+ ports |
|
Supported speeds |
100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
|
40 Gigabit Ethernet uplink port |
6 fixed QSFP+ ports |
|
Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber. |
|
|
The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations. |
|
|
Power supplies (up to 2) |
650W AC, 930W DC, or 1200W HVAC/HVDC |
|
Typical power*(AC & DC) |
374.5W |
|
Maximum power* (AC & DC) |
694W |
|
Input voltage (AC) |
100 to 240V |
|
Input voltage (HVAC) |
200 to 277V |
|
Input voltage (DC) |
-40V to -72V DC (min-max) -48V to -60V DC (nominal) |
|
Input voltage (HVDC) |
??240 to ??380V |
|
Frequency (AC) |
50 to 60 Hz |
|
Fans |
4 |
|
Physical (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1cm) |
|
Acoustics |
48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed |
|
RoHS compliance |
Yes |
|
Product Specifications |
|
|
Maximum number of longest prefix match (LPM) routes |
128,000* |
|
Maximum number of IP host entries |
208,000* |
|
Maximum number of MAC address entries |
96,000* |
|
Number of multicast routes |
?? 32,000 (without virtual PortChannel [vPC]) ?? 32,000 (with vPC) |
|
Number of Interior Gateway Management Protocol (IGMP) snooping groups |
?? 32,000 (without vPC) ?? 32,000 (with vPC) |
|
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch |
16 |
|
Number of access control list (ACL) entries |
?? 4000 ingress ?? 1000 egress |
|
Maximum number of VLANs |
4096 |
|
Maximum number of Virtual Routing and Forwarding (VRF) instances |
1000 |
|
Maximum number of links in a PortChannel |
32 |
|
Maximum number of ECMP paths |
64 |
|
Maximum number of PortChannels |
528 |
|
Number of active SPAN sessions |
4 |
|
Maximum number of Rapid per-VLAN Spanning Tree (RPVST) instances |
507 |
|
Maximum number of Hot-Standby Router Protocol (HSRP) groups |
490 |
|
Maximum number of Multiple Spanning Tree (MST) instances |
64 |
|
Maximum number of VXLAN tunnel endpoints (VTEP) |
256 |
|
Environmental Properties |
|
|
Operating temperature |
32 to 104 ?F (0 to 40 ?C) |
|
Nonoperating (storage) temperature |
-40 to 158 ?F (-40 to 70 ?C) |
|
Humidity |
5 to 95% (noncondensing) |
|
Altitude |
0 to 13,123 ft (0 to 4000m) |
|
Weight |
|
|
Cisco Nexus 9372PX/9372PX-E without power supplies or fans |
22.2 lb (10.1 kg) |
|
Cisco Nexus 9372TX/9372TX-E without power supplies or fans |
22.6 lb (10.25 kg) |
|
Safety and EMC |
|
|
Regulatory compliance |
Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
|
Safety |
?? UL 60950-1 Second Edition ?? CAN/CSA-C22.2 No. 60950-1 Second Edition ?? EN 60950-1 Second Edition ?? IEC 60950-1 Second Edition ?? AS/NZS 60950-1 ?? GB4943 |
|
EMC: Emissions |
?? 47CFR Part 15 (CFR 47) Class A ?? AS/NZS CISPR22 Class A ?? CISPR22 Class A ?? EN55022 Class A ?? ICES003 Class A ?? VCCI Class A ?? EN61000-3-2 ?? EN61000-3-3 ?? KN22 Class A ?? CNS13438 Class A |
|
EMC: Immunity |
?? EN55024 ?? CISPR24 ?? EN300386 ?? KN 61000-4 series |
|
RoHS |
The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors |
