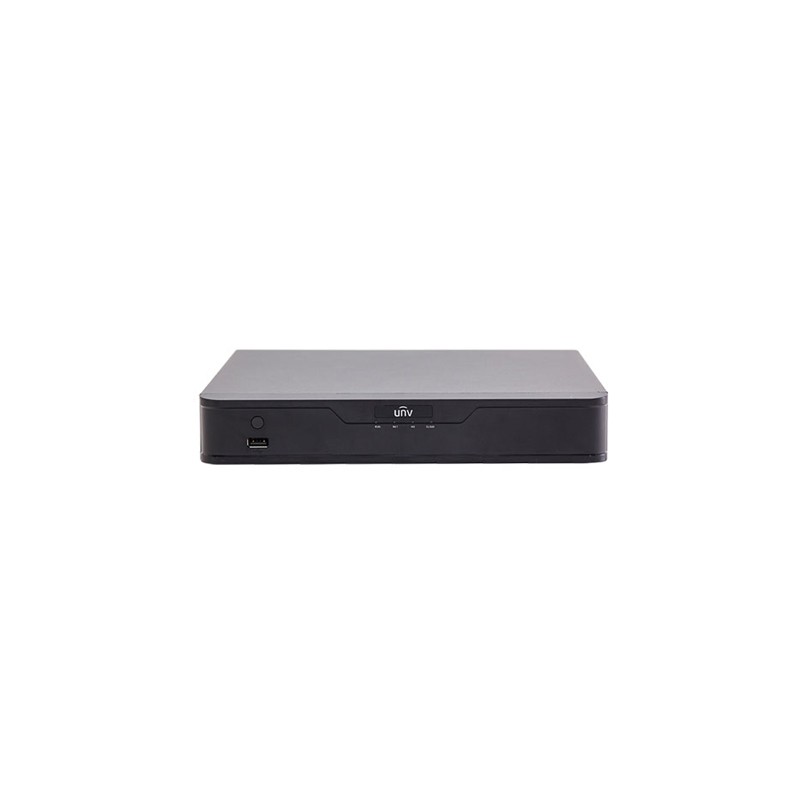

NVR301-04B-P4 Specification
NVR301-04B-P4 Specification |
|
|
Video/Audio Input |
|
|
IP Video Input |
4-ch |
|
Network |
|
|
Incoming Bandwidth |
40Mbps |
|
Outgoing Bandwidth |
40Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output
|
HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
|
Recording Resolution |
1080p/960p/720p/D1/2CIF/CIF |
|
Synchronous Playback |
4-ch |
|
Corridor Mode Screen |
3/4 |
|
Decoding |
|
|
Decoding format |
Ultra 265/H.265/H.264 |
|
Liveview/Playback |
1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
4 x 1080p@20, 4 x 720p@30 |
|
Hard Disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
up to 10TB for each disk |
|
External Interface |
|
|
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
|
USB Interface |
Front panel?1 x USB2.0 ; Rear panel?1 x USB2.0 |
|
PoE |
|
|
Interface |
4 independent 100 Mbps PoE network interfaces |
|
Max Power |
Max 30W for single port Max 54W in total ( 13.5W for each) |
|
Supported Standard |
IEEE 802.3at, IEEE 802.3af |
|
General |
|
|
Power Supply
|
48V DC Power Consumption: ??5 W( without HDD ) |
|
Working Environment |
-10 ?C ~ + 55 ?C ( +14 ?F ~ +131 ?F ), Humidity ?? 90% RH(non-condensing) |
|
Dimensions(W x D x H) |
260mm x 240mm x 44mm(10.2″x9.4″x1.7″) |
