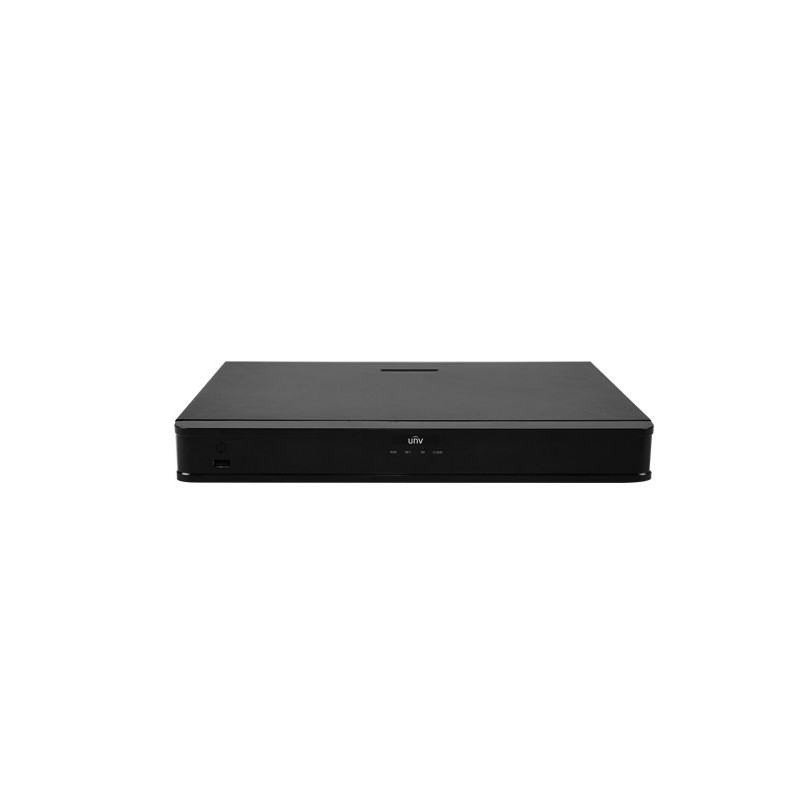

NVR302-16E-P16-B Specification
NVR302-16E-P16-B Specification |
|
|
Video/Audio Input |
|
|
IP Video Input |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming bandwidth |
160Mbps |
|
Outgoing bandwidth |
320Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output
|
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 |
|
Hard Disk |
|
|
SATA |
2 SATA interface |
|
Capacity |
up to 10TB for each disk |
|
External Interface |
|
|
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
|
Alarm In |
4-ch |
|
Alarm Out |
1-ch |
|
PoE |
|
|
Interface |
16 independent 100 Mbps PoE network interfaces |
|
Max Power
|
Max 30W for single port Max 240W in total (15W for each) |
|
Supported Standard |
IEEE 802.3af/at |
|
General |
|
|
Power Supply |
100 ~ 240 V AC Power Consumption: ?? 12 W (without HDD) |
|
Working Environment |
-10 ?C~+ 55 ?C (+14 ?F~+131 ?F), Humidity ?? 90% RH (non-condensing) |
|
Dimensions(W x D x H) |
380 mm x 315mm x 53 mm (15″ x 12.4″x2.1″) |
