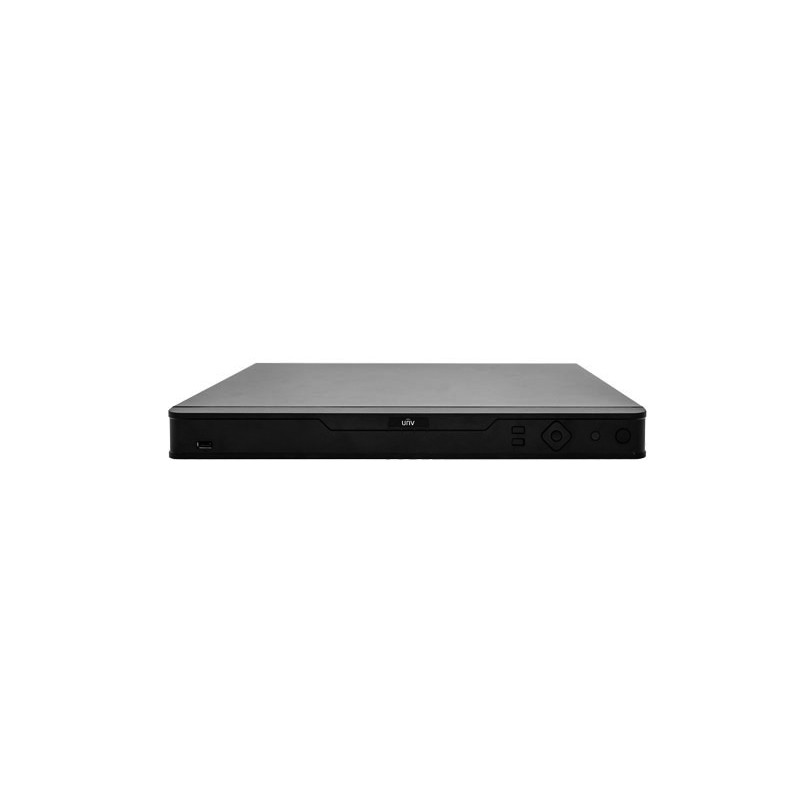

NVR304-16E-B Specification
NVR304-16E-B Specification |
|
|
Video/Audio Input |
|
|
IP Video Input |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming bandwidth |
160Mbps |
|
Outgoing bandwidth |
320Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output
|
HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25 |
|
Hard Disk |
|
|
SATA |
4 SATA interfaces |
|
Capacity |
up to 10TB for each HDD |
|
External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
Serial Interface |
1 x RS485 |
|
USB Interface |
Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
General |
|
|
Power Supply
|
12V DC Power Consumption: ?? 12W( without HDD ) |
|
Working Environment |
-10 ?C ~ + 55 ?C ( +14 ?F ~ +131 ?F ), Humidity ?? 90% RH(non-condensing) |
|
Dimensions(W x D x H) |
440mm x 344mmx 44mm (17.3″ x 13.5″x1.7″ ) |
