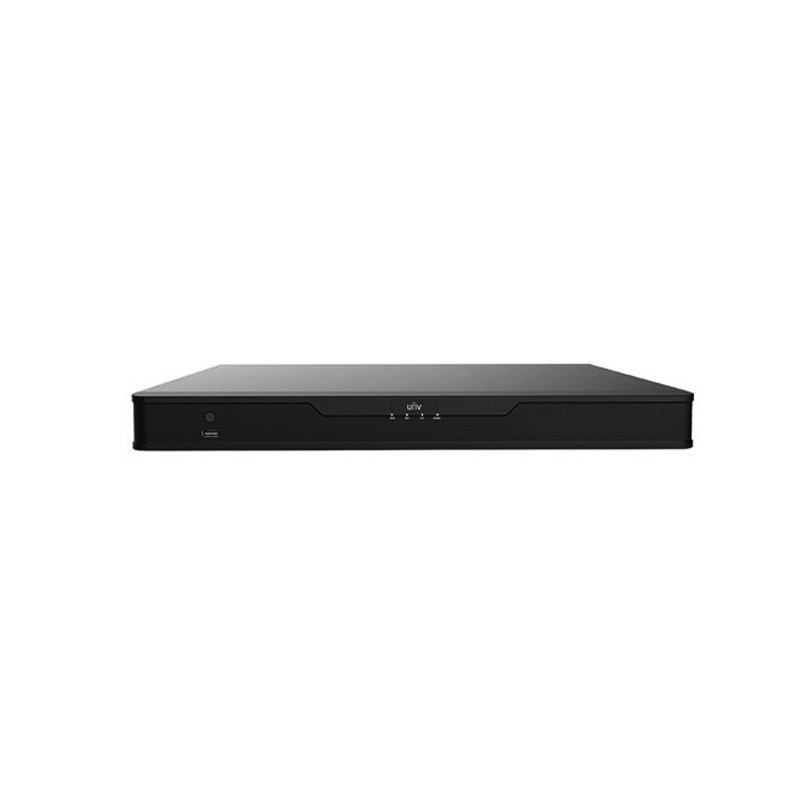

NVR304-16S Specification
NVR304-16S Specification |
|
|
Video/Audio Input |
|
|
IP Video Input |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming bandwidth |
96Mbps |
|
Outgoing bandwidth |
64Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output
|
HDMI: 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1280×720@60, 1024×768@60 |
|
Audio Output |
1-ch, RCA |
|
Recording Resolution |
8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding |
|
|
Decoding format |
Ultra265/H.265/H.264 |
|
Live view/ Playback |
8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF |
|
Capability |
2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1 |
|
Hard Disk |
|
|
SATA |
4 SATA interfaces |
|
Capacity |
up to 10TB for each disk |
|
External Interface |
|
|
Network Interface |
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
USB Interface |
Rear panel?1 x USB2.0, 1 x USB3.0 Front panel?1 x USB2.0 |
|
General |
|
|
Power Supply
|
12V DC Power Consumption: ?? 15W( without HDD ) |
|
Working Environment |
-10 ?C ~ + 55 ?C ( +14 ?F ~ +131 ?F ), Humidity ?? 90% RH(non-condensing) |
|
Dimensions(W x D x H) |
440mm x 344mm x 44mm (17.3″ x 13.5″ x1.7″ ) |
