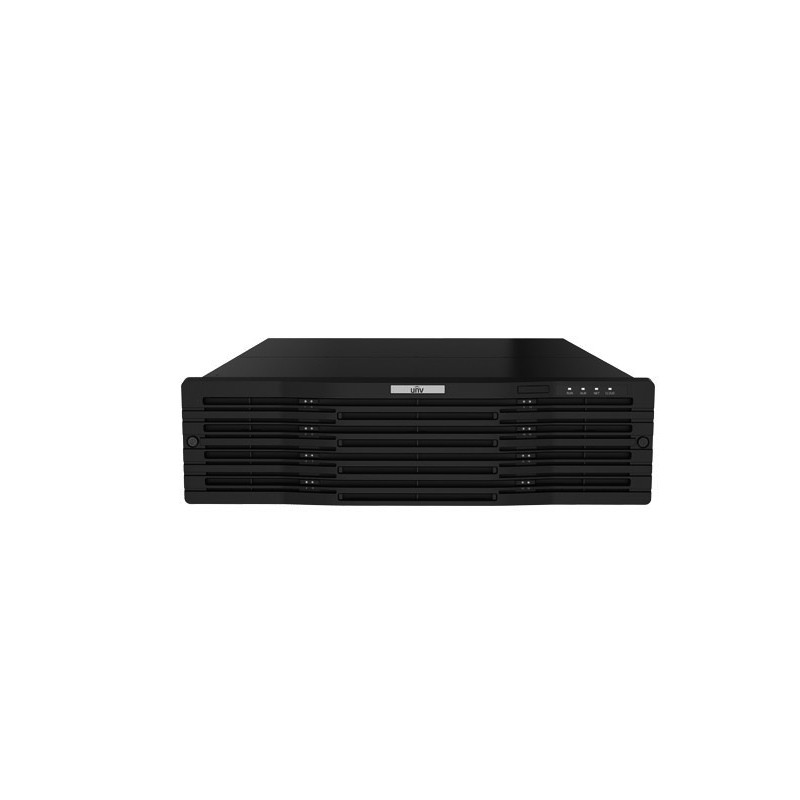

NVR316-64R-B Specification
NVR316-64R-B Specification |
|
|
Video/Audio Input |
|
|
IP Video Input |
64-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
320Mbps |
|
Outgoing Bandwidth |
320Mbps |
|
Remote Users |
128 |
|
Protocols |
SNMP,P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output
|
HDMI1/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI2: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
|
Hard Disk |
|
|
SATA |
16 SATA interfaces |
|
Capacity |
Up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
Smart |
|
|
VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
|
VCA Search |
Face search, Behavior search |
|
Statistical Analysis |
People counting |
|
Disk Array |
|
|
Array Type |
RAID 0, 1, 5, 6, 10,50,60 |
|
External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
USB Interface |
Rear panel: 2 x USB2.0, 1 x USB3.0 |
|
Alarm In |
16-ch |
|
Alarm Out |
10-ch |
|
General |
|
|
Power Supply |
100~240 VAC Power Consumption: ?? 23 W(without HDD) |
|
Working Environment |
Working Environment -10 ?C ~ + 55 ?C (+14 ?F ~ +131 ?F), Humidity ?? 90% RH (non-condensing) |
|
Dimensions(W x D x H) |
482mm x 477mm x131mm (18. 8″ x 19.06″ x 5.2″) |
