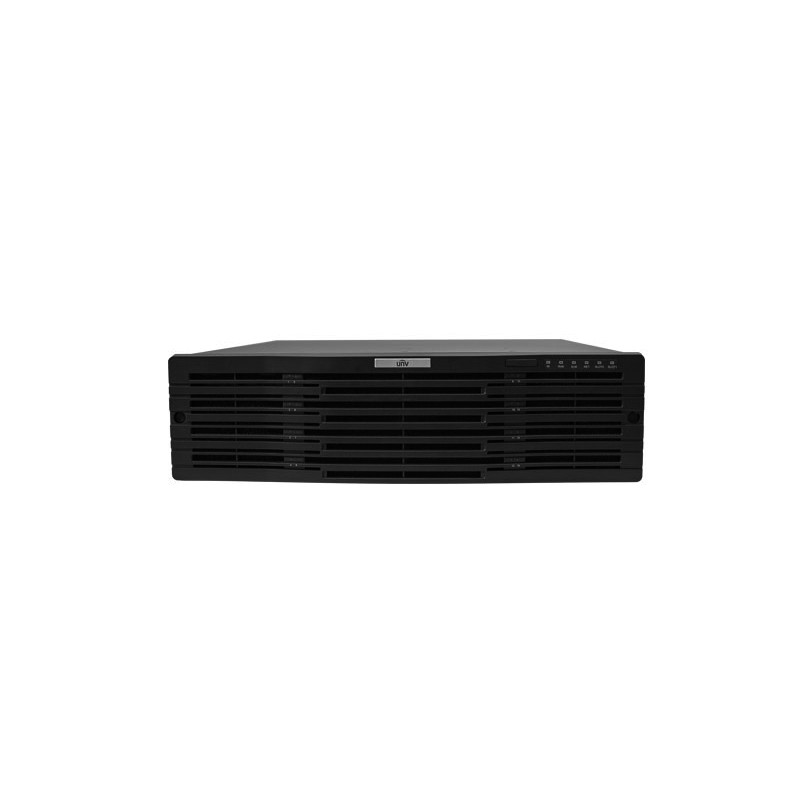

NVR516-64 Specification
NVR516-64 Specification |
|
|
Video/Audio Input |
|
|
IP Video Input |
64-ch |
|
Two-way Audio Input |
1-ch, BNC |
|
Network |
|
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output
|
VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI1? 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI2: 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, BNC |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
|
Hard Disk |
|
|
SATA |
16 SATA interfaces |
|
Capacity |
up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
miniSAS |
2 miniSAS ports |
|
Disk Array |
|
|
Array Type |
RAID 0/1/5/6/10/50/60 |
|
External Interface |
|
|
Network Interface |
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
USB Interface |
Rear panel: 4 x USB3.0 |
|
Alarm In |
24-ch |
|
Alarm Out |
8-ch |
|
Decoding Card (optional) |
2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
|
Power Output |
12V |
|
General |
|
|
Power Supply |
100 ~ 240V AC Power Consumption: ?? 50 W( without HDD ) |
|
Working Environment |
-10 ?C ~ + 55 ?C ( +14 ?F ~ +131 ?F ), Humidity ?? 90% RH(non-condensing) |
|
Chassis |
19-inch rack-mounted 3U chassis |
|
Dimensions(W x D x H) |
482mm x 477mm x 131mm (18.8″ x 19.0″ x5.1″) |
