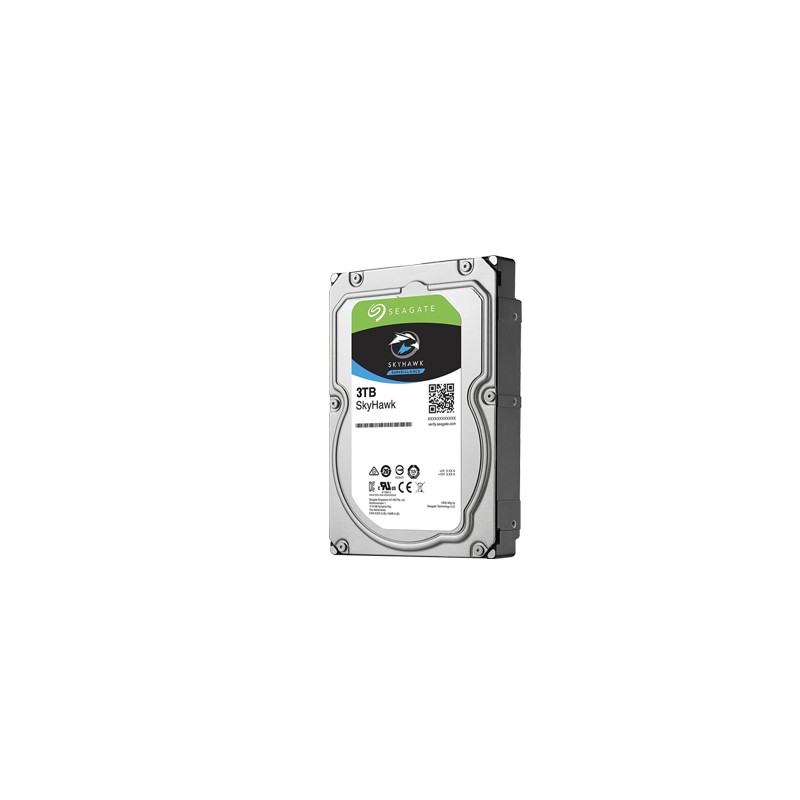

ST3000VX006 Specification
ST3000VX006 Specification |
||
|
Formatted capacity (4K/sector) |
3000GB (3TB) |
|
|
Guaranteed sectors |
5,860,533,168 |
|
|
Heads |
6 |
|
|
Disks |
3 |
|
|
Bytes per sector |
4K (512 bytes per sector emulated at the interface) |
|
|
Default sectors per track |
63 |
|
|
Default read/write heads |
16 |
|
|
Default cylinders |
16,383 |
|
|
Recording density (max) |
1807kFCI |
|
|
Track density (avg) |
352ktracks/in |
|
|
Areal density (avg) |
625Gfc/in2 |
|
|
Spindle speed |
5900 RPM |
|
|
Internal data transfer rate (max) |
2147Mb/s |
|
|
Sustained data transfer rate OD |
159MB/s |
|
|
I/O data-transfer rate |
600MB/s |
|
|
ATA data-transfer modes supported
|
PIO modes: 0 to 4 Multiword DMA modes: 0 to 2 Ultra DMA modes: 0 to 6 |
|
|
Cache buffer |
64MB |
|
|
Height (max) |
26.1mm / 1.028 in |
|
|
Width (max) |
101.6mm / 4.0 in ( ? 0.010 in) |
|
|
Length (max) |
147.00mm / 5.78 in |
|
|
Average latency |
5.1ms |
|
|
Power-on to ready (max) |
<17s |
|
|
Standby to ready (max) |
<17s |
|
|
Track-to-track seek time (typical) |
<1.0ms read; <1.2ms write |
|
|
Average seek (typical) |
<8.5ms read; <9ms write |
|
|
Startup current (typical) 12V (peak) |
1.8A |
|
|
Voltage tolerance (including noise) |
5V: ? 5% 12V: ?10% |
|
|
Operating temperature (drive case temperature) |
0 ? to 70 ?C |
|
|
Nonoperating temperature (ambient) |
??40 ? to 70 ?C |
|
|
Temperature gradient (max) |
20 ?C per hour (operating) 30 ?C per hour (nonoperating) |
|
|
Relative humidity |
5% to 95% (operating) 5% to 95% (nonoperating) |
|
|
Relative humidity gradient (max) |
30% per hour |
|
|
Wet bulb temperature (max) |
37.7 ?C (operating) 40.0 ?C (nonoperating) |
|
|
Altitude, operating |
??60.96m to 3048m ( ??200 to 10,000+ ft.) |
|
|
Altitude, nonoperating (below mean sea level, max) |
??60.96m to 12,192m ( ??200 ft. to 40,000+ ft.) |
|
|
Operational Shock (max) |
80 Gs at 2ms |
|
|
Nonoperational Shock (max) |
300 Gs at 2ms |
|
|
Vibration, operating
|
2Hz ??22Hz: 0.25 Gs, Limited displacement 22Hz ??350Hz: 0.50 Gs 350Hz ??500Hz: 0.25 Gs |
|
|
Vibration, nonoperating
|
5Hz ??22Hz: 3.0 Gs 22Hz ??350Hz: 3.0 Gs 350Hz ??500Hz: 3.0 Gs |
|
|
Drive acoustics, sound power |
Idle |
2.1 bels (typical) 2.3 bels (max) |
|
Seek |
2.3 bels (typical) 2.4 bels (max) |
|
|
Nonrecoverable read errors |
1 per 1014 bits read |
|
|
Mean Time Between Failure (MTBF) |
1,000,000 hrs |
|
|
Load/Unload cycles |
300K at 25 ?C, 50% rel. humidity |
|
|
Supports Hotplug operation per the Serial ATA Revision 3.2 specification |
Yes |
|
