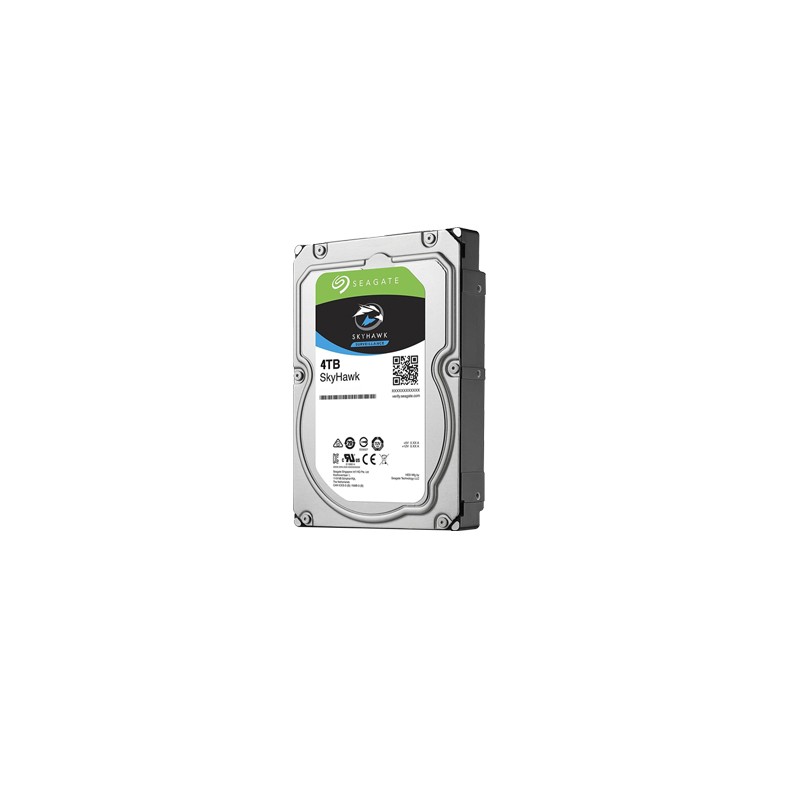

ST4000VX000 Specification
ST4000VX000 Specification |
||
|
Interface |
SATA 6Gb/s |
|
|
Cache Multisegmented (MB) |
64 |
|
|
Bytes per Sector |
4096 |
|
|
Surveillance Performance |
||
|
RV (Rotational Vibration) Sensor |
Y |
|
|
Drive Bays Supported |
1 to 16 |
|
|
Cameras Supported |
up to 32 |
|
|
Seek Average, Read (ms) |
<9.5 |
|
|
Seek Average, Write (ms) |
<9.5 |
|
|
Average Data Rate, Read/Write (MB/s) |
146 |
|
|
Max Sustained Data Rate, OD Read (MB/s) |
180 |
|
|
Voltage |
||
|
Voltage Tolerance, Including Noise (5V) |
?5% |
|
|
Voltage Tolerance, Including Noise (12V) |
?10% |
|
|
Power Management |
||
|
Startup Power (A) |
2.0 |
|
|
Operating Mode, Typical (W) |
5.6 |
|
|
Idle Average (W) |
4.0 |
|
|
Standby Mode (W) |
0.5 |
|
|
Sleep Mode (W) |
0.5 |
|
|
Environmental |
||
|
Temperature |
Operating (ambient, min ??) |
0 |
|
Operating (drive case, max ??) |
70 |
|
|
Nonoperating (ambient, min ??) |
??40 |
|
|
Nonoperating (ambient, max ??) |
70 |
|
|
Reliability |
||
|
Load/Unload Cycles |
300,000 |
|
|
Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E14 |
|
|
Annualized Failure Rate (AFR) |
<1% |
|
|
Power-On Hours |
8760 |
|
|
Warranty, Limited (years) |
3 |
|
|
Physical |
||
|
Height (mm/in) |
26.11/1.028 |
|
|
Width (mm/in) |
101.6/4.0 |
|
|
Depth (mm/in) |
146.99/5.787 |
|
|
Carton Unit Quantity |
20 |
|
|
Cartons per Pallet |
40 |
|
|
Cartons per Layer |
8 |
|
