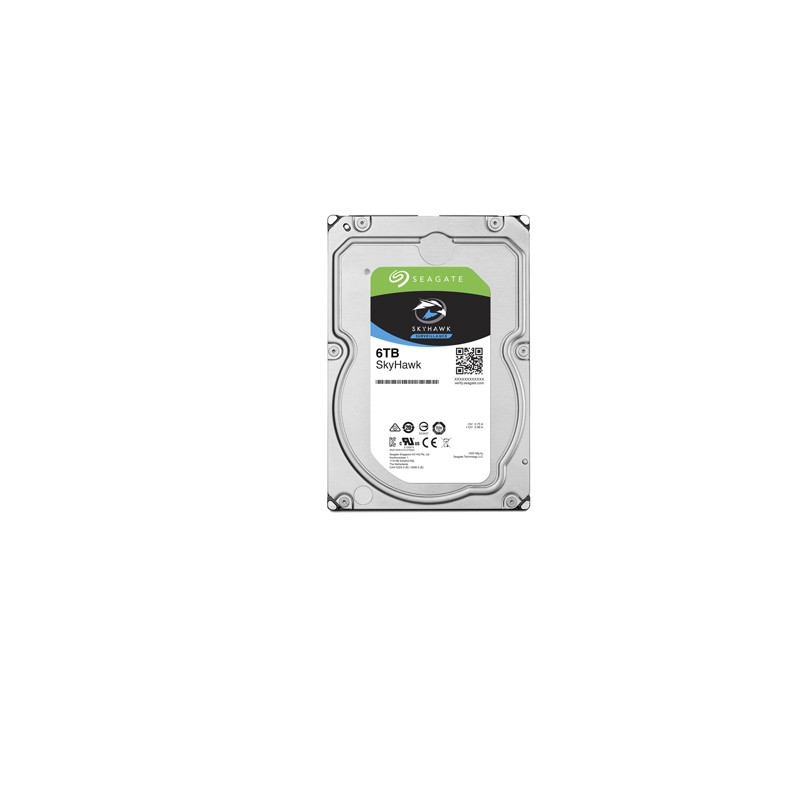

ST6000VX0003 Specification
ST6000VX0003 Specification |
|
|
SkyHawkTM Health Management Included |
Yes |
|
Interface |
SATA 6Gb/s |
|
Features and Performance |
|
|
Drive Bays Supported |
8+ |
|
Cameras Supported |
Up to 64 |
|
Max. Sustained Transfer Rate OD (MB/s) |
195MB/s |
|
Cache (MB) |
256 |
|
Reliability/Data Integrity |
|
|
Tarnish Resistant |
Yes |
|
Load/Unload Cycles |
300,000 |
|
Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E15 |
|
Power-On Hours per Year (24x7) |
8760 |
|
Workload Rate Limit (WRL) |
180 |
|
MTBF |
1,000,000hr |
|
Warranty, Limited (years) |
3 |
|
Power Management |
|
|
Startup Current, Typical (12V, A) |
2 |
|
Average Operating Power (W) |
9W |
|
Idle Average (W) |
7W |
|
Standby Mode/Sleep Mode, Typical (W) |
0.6/0.6 |
|
Voltage Tolerance (5V) |
?5% |
|
Voltage Tolerance (12V) |
?10% |
|
Environmental/Temperature |
|
|
Operating (ambient, min ??) |
5 |
|
Operating (drive case, max ??) |
70 |
|
Nonoperating (ambient, min ??) |
-40 |
|
Physical |
|
|
Height (mm/in, max) |
26.11mm/1.028in |
|
Width (mm/in, max) |
101.85mm/4.01in |
|
Depth (mm/in, max) |
146.99mm/5.787in |
|
Carton Unit Quantity |
20 |
|
per Pallet/Cartons per Layer |
40/8 |
